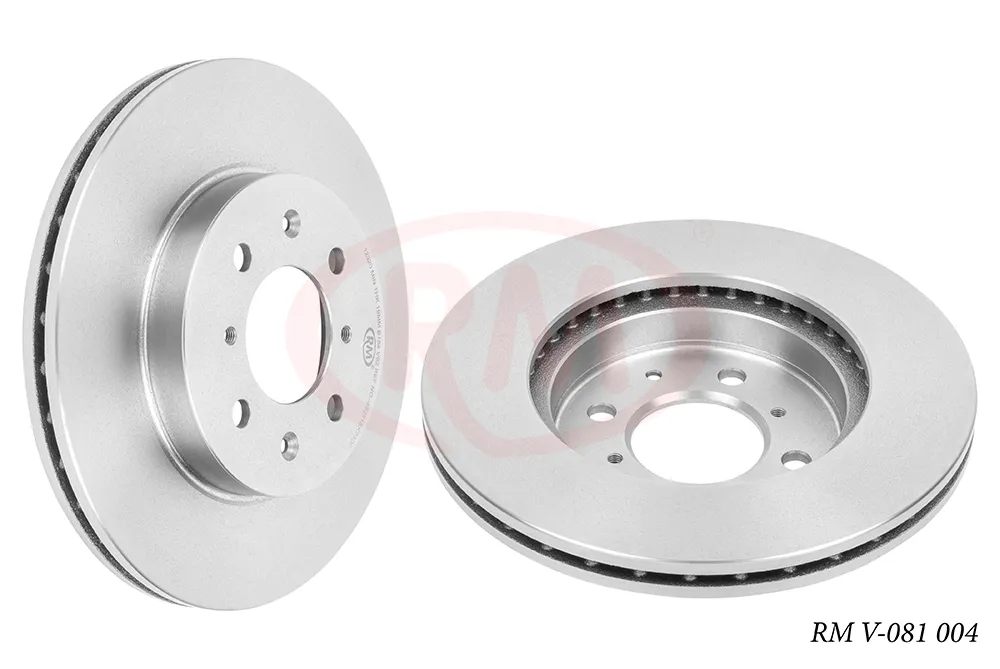

HONDA Mobelio Brake Disc

HONDA - City Type 5 (IVTEK) Jazz ( 4 Hole Tapping ) / Mobilio

~~Rs. 1261.00~~ (15.00 %)
Rs. 1071.85

V 081 004

Categories : Brake Disc

Product Weight : 4.87 KG

Shipping Charge : 40 Rs. Per KG

Axle

Front

Main Diameter

262 mm

Overall height

45 mm

Pilot Bore

64.2 mm

Brake Face Thickness

21.5 mm

Minimum Thickness

19.5 mm

Boss Diameter

151.7 mm

Counter Diameter

140 mm

Plate Thickness

6.2 mm

Number of Holes & Threads

4+2+2 qty

Hole Diameter

12.7 mm

PCD

100 mm

Thread Hole

M8X1.25 & M8X1.25

Thread Hole PCD

104 & 87 mm
